ACR Copper Tube yog sab saum toj -notch, seamless tooj liab tubing ua rau huab cua- txias thiab khoom tub yees. Nws tau ua raws li ASTM B280 thiab EN 12735-1 cov qauv, yog li nws yog huv heev, tuav lub siab zoo li champ, thiab ua haujlwm zoo txawm tias qhov kub thiab txias tsis tu ncua.
Jiangsu CunRui Hlau Khoom Co., Ltd. muag ACR Copper Tube nyob rau hauv ncaj daim thiab coils rau installers, OEMs, thiab loj tsim tuam txhab uas muag. Lub raj yog ua los ntawm tooj liab uas ua hluav taws xob zoo thiab muaj cov pa oxygen txaus xwb. Qhov no ua rau nws ruaj khov txhua yam zoo thiab tiv thaiv nws los ntawm corrosion los ntawm cov tub yees sab hauv.
Txhua lub raj yog ua tib zoo kos, rhuab, thiab smoothed kom paub tseeb tias nws yog qhov loj thiab muaj ib tug du hauv. Qhov no tseem ua kom cov dej ntws zoo ib yam, uas yog qhov yuav tsum tau ua rau cov tub yees thiab lub zog niaj hnub no - ntse HVACR iav.
ACR Copper Tube-thiab qee zaum ACR Copper Pipe- tshwm sim nyob rau hauv qhov sau ntawv no- los pab nrog kev tshawb fawb xyaw, tab sis peb tseem hais lus zoo li lub chaw tsim khoom tiag.
Product details
Specifications & Technical Parameters
| Cov qauv khoom siv | ASTM B280, EN 12735 -1, JIS H3300, UNS C12200 (phosphorus-deoxidized tooj liab) |
| Sab nraud txoj kab uas hla | 1/4 nti rau 7/8 nti |
| Phab ntsa thickness | 0.41mm txog 1.20mm |
| Ntev | 3m, 6m, lossis customized |
| Hom ntawv | Ncaj ntev, pancake coils, LWC (theem qhov txhab coils) |
| Tensile zog | 205-245 MPa (ntxiv) |
| Elongation | Ntau dua lossis sib npaug li 30% |
| Hardness | 40-75 HV, nyob ntawm qhov kub thiab txias |
Hom tshuaj muaj pes tsawg leeg (Tswj)
| Copper (Cu) | Ntau dua lossis sib npaug li 99.90% |
| Phosphorus (P) | 0.015–0.040% |
Nta & Qhov Zoo
High resistant rau corrosion thiab oxidation
Copper's natural corrosion kuj tso cai rau lub raj kom ruaj khov txawm tias raug ya raws, cov tub yees, lossis cov tshuaj lom neeg muaj nyob hauv HVACR systems. Qhov no txo qhov kev pheej hmoo ntawm kev xau thiab ua rau cov khoom siv lub neej ua haujlwm.
High thermal conductivity
Cov khoom muab kev hloov pauv sai sai, tso cai rau cov tub yees kom circulate zoo. Qhov no ua rau cov neeg siv khoom uas tsim cov tshuab cua txias, cov twj tso cua sov, lossis cov chillers khaws cov kev ua haujlwm zoo thaum txo qis zog.
High mechanical stability nyob rau hauv siab
ACR Copper Yeeb Nkab yog kos thiab annealed los tiv thaiv kev ua haujlwm siab uas tau ntsib nyob rau niaj hnub no R410A, R32, thiab R454B systems. Cov phab ntsa tuab zoo ib yam txo qhov deformation thaum lub sijhawm teeb tsa thiab khoov.
Vim li cas thiaj xaiv peb?
vim li cas thiaj xaiv peb
- Engineered Consistency, Tsis yog Khoom:
Peb ua ntau tshaj li qhov muag khoom xwb. Peb ua haujlwm nrog cov khoom siv raw khoom zoo, siv li - mus rau - hnub txheej txheem rau kos duab thiab annealing, thiab khaws cov khoom tswj hwm. Qhov no txhais tau tias txhua lub raj yog tib yam ntawm lub zog, kev huv, thiab nws ua haujlwm li cas. Qhov no yog qhov tseem ceeb rau kev ua kom lub suab nrov thiab kav ntev.
- Kev ntseeg tau yog peb tus qauv:
Peb khaws ntau cov khoom hauv Tshuag yog li peb tuaj yeem xa tuaj raws sijhawm thiab zoo tib yam txhua lub sijhawm. Peb muaj ntau qhov ntau thiab tsawg ACR npaj mus, yog li peb tuaj yeem saib xyuas cov xaj xaj sai thiab pab tawm cov neeg xa khoom thiab cov neeg cog lus. Yeej, peb pab kom downtime tsawg.
- A Trusted Partnership:
Peb nthuav qhia peb tus kheej ua qhov txuas ntxiv ntawm koj txoj kev lag luam uas twb muaj lawm. Peb lub hom phiaj tseem ceeb yog los muab kev txhawb nqa cov ntaub ntawv muaj txiaj ntsig kom koj tuaj yeem npaj nrog kev ntseeg siab, sib tw sib tw, thiab ua tiav cov haujlwm ua tiav, tsis tas yuav txhawj xeeb txog cov khoom tsis txaus lossis kev hloov pauv zoo.
Customized Services
Kev cai OD thiab phab ntsa tuab ua ke rau OEM tsim qauv.
PVC-coated los yog pleev xim rau sab nrauv rau corrosion- tej thaj chaw.
Ua ntej- txiav qhov ntev uas tau txiav txim siab kom txuag tau ntawm - lub sijhawm txiav qhov chaw.
Kev tu tshwj xeeb rau cov tub yees uas xav tau ultra- muaj kuab paug tsawg.

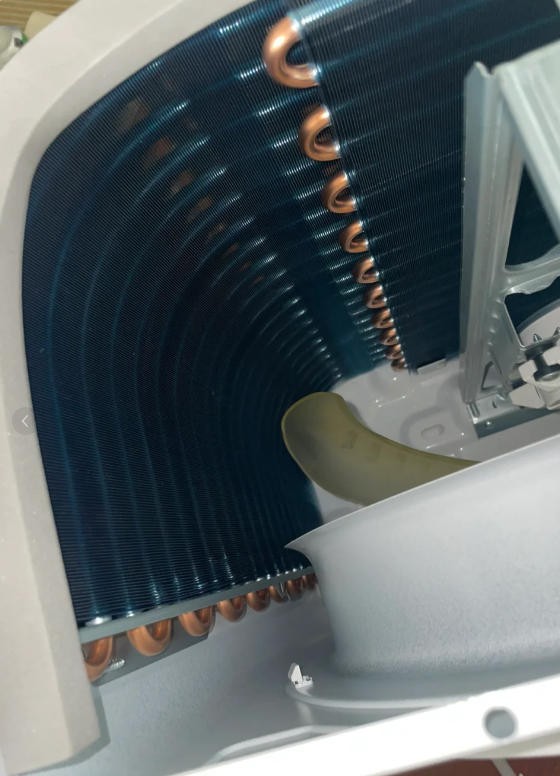

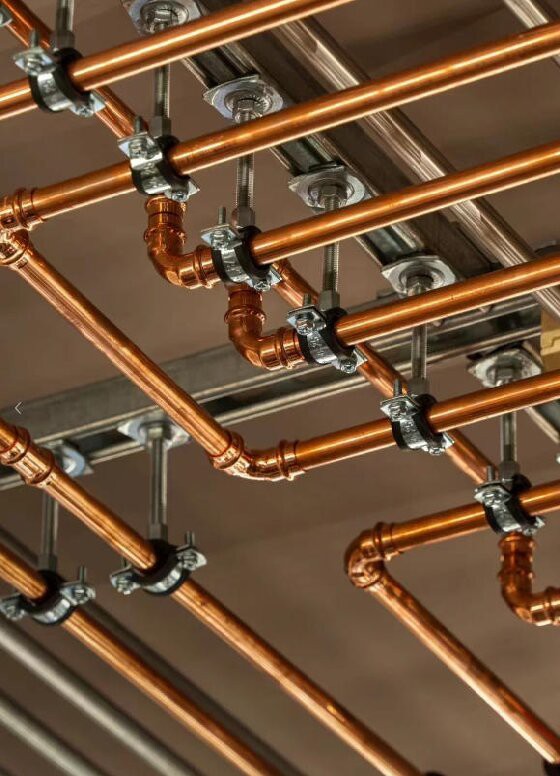

Daim ntawv thov
FAQ
Q: Koj puas muaj ob qho tib si tawv thiab mos ACR tooj liab kav?
A: Yog, peb muaj ob qho tib si. Nws tsuas yog nyob ntawm seb koj xav tau dab tsi rau koj lub installation. Cov kav dej mos feem ntau tuaj hauv coils.
Q: Koj puas muaj cov ntaub ntawv tshuaj xyuas los ntawm lwm lub tuam txhab?
A: Tseeb, ua ntej peb xa nkoj, peb tuaj yeem teeb tsa kev tshuaj xyuas nrog SGS, BV, lossis lwm tus neeg koj xav siv.
Q: Ntev npaum li cas tus me nyuam yuav siv sij hawm ntau?
A: Yog tias nws yog qhov loj me, peb tuaj yeem xa nws li ntawm ib lub lis piam lossis kaum hnub. Yog tias koj xav tau qhov loj me tshwj xeeb, nws yuav siv sijhawm ob mus rau peb lub lis piam, muab lossis nqa, nyob ntawm seb koj xaj ntau npaum li cas.
Q: Ua li cas koj ntim cov khoom rau export?
A: Peb ntim cov raj rau hauv cov hnab yas kaw nrog ua npuas ncauj, tom qab ntawd muab tso rau hauv cov thawv ntoo uas muaj zog, yog li lawv nyob twj ywm thiab tsis txhob tawg.
Q: Kuv puas tuaj yeem xaj tooj liab fittings nrog ACR Copper Tube?
A: Yog, tsis muaj teeb meem. Peb tuaj yeem muab pov rau hauv li qub, lub luj tshib, tees, thiab rwb thaiv tsev, tag nrho hauv ib pob yog tias koj xav tau.
